Case Turner Conveyor

Case Chute Drop Conveyor System Manufacturer in India

Omtech Food Conveying System delivers a conveyor solution for shifting cartons and cases between the various floors of a production or packaging line. A case chute drop conveyor system is implemented when moving boxes from an elevated position to a lower elevation. It is used to direct product from one level to another without the need to lift and reposition or slide the product.

Such systems can be integrated into the material handling layouts where cartons are directed towards packing, sorting, collection or dispatch areas. The layout can be designed as per the carton size, weight, drop height and space available and therefore, enable businesses to create a more organised flow of goods.

Case Turner Conveyor

Case Turner Conveyor

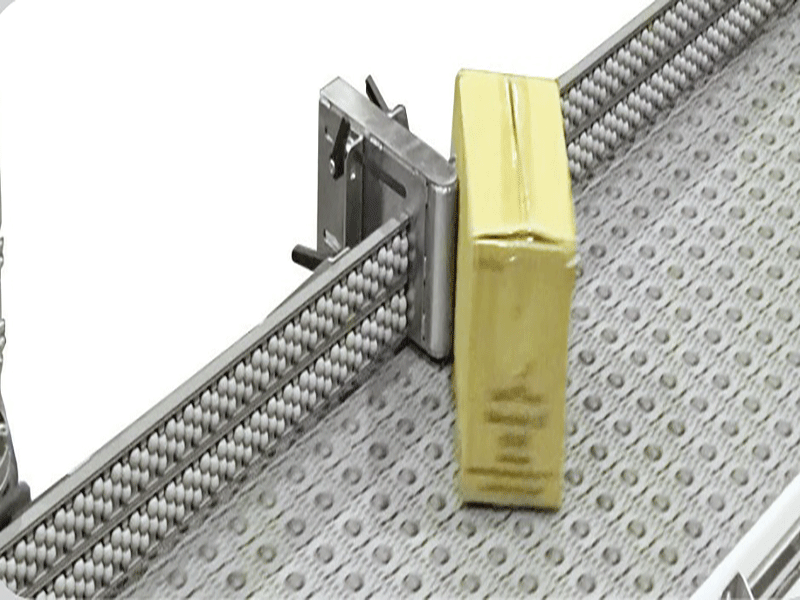

A Case Turner Conveyor is employed to turn the cartons or cases with respect to their material handling. It helps in aligning the boxes as per the need of the succeeding operation like packing, Labelling, Inspection, Sorting, etc. The Conveyor is a great presence on any production or packing line as it offers the proper orientation for handling the cartons.

A Case Turning Conveyor can be added to an existing conveyor system to orientate cartons as they are conveyed. The type and specifications of the case turner will vary according to the size and weight of the cartons, conveyor speed and direction of turn. This will enable a more streamlined movement of cases throughout the process.

Key Features

Applications

Technical Specification

Application Cartoon Transfer Conveyor
Usage To transfer Cartoon
Material Handling Capacity As per Customized
Brand Name Omtech Food Engg.
Country of Origin India
Belt Material Roller, Belt (Modular, PVC, PU) as per Customized.
Size As per Customized
Color As per Customized
Material SS 304, MS Powder Coating.
Operating Speed As per Customized
Side Guard As per Customized
Belt Drive Sprocket, Roller, PLC Program, Drive Card
Features Hygienic, Easy to Clean, Fast Installation, Simple Maintenance
Domestic Market Supply All India
International Market Supply USA

Industries We Serve

Frequently Asked Questions(FAQs)

A Case Turner Conveyor is used for turning cases or cartons to the designated orientation while in transit of packaging or production line.

They position the case accurately, enabling it for further use such as labelling, inspecting, packing, palletising and more, thus eliminating the need for manual operations.

They can be used for different varieties of boxes, cartons, cases and the packaged goods, based on their specific size, volume and the type of conveyor.

They are found in food and beverage, FMCG, pharmaceutical, packaging and in distribution centers and warehousing applications.

Yes. These can be customized based on the case sizes, case turning degrees, speed of operation and production capabilities of the existing infrastructure or workflow.
